Delta Electronics

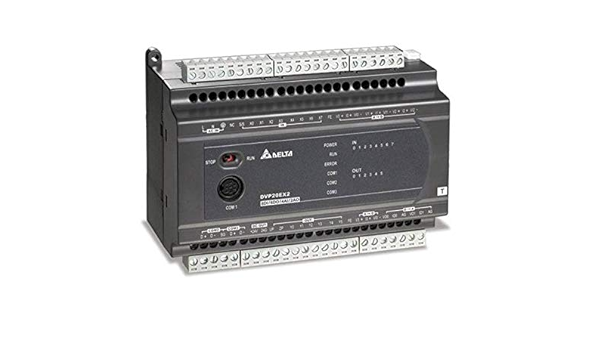

DVP24ES200R

DVP24ES200R

MPU with 16 DI;8 DO(R) || Main supply 100~240 V AC

Block Type Programmable Logic Controllers (PLCs)

ES2 series PLCs are compact highly efficient, functional instruments with incorporated communication capabilities, advantages such as built-in convenient commands offer easy access to operation and communication function monitoring.

Key features:

  • Relay output
  • 32-bit CPU for high-speed processing
  • Built-in 1 x RS-232 and 2 x RS-485 ports
  • Max. execution speed of basic instructions: 0.35 ¼
  • Program capacity: 16 k steps / Data register: 10 k words
  • Standard - 16 / 20 / 24 / 32 / 40 / 60 / 80 I/O points for a variety of applications
  • Highly efficient processing ability: 1 k steps of programming can be completed within 1ms
  • Up to 4 levels of password protection secures your source programs and intellectual property
  • E- Ethernet CPUs have an additional Ethernet port. Supports Modbus TCP/IP & Ethernet/IP (adapter mode)
  • Max. 100 kHz pulse control, specific motion control instructions (mark/masking and instant frequency changing) for multi-axis applications
SERIES ES2 series
SUPPLY 100 - 240 VAC
DIGITAL INPUTS (DI) 16
DIGITAL OUTPUTS (DO) 08
DESCRIPTION Standard PLC
OUTPUT TYPE Relay
DIMENSIONS (MM) (H) 125 X (D) 78
MOUNTING DIN rail
INTERFACE Built-in RS485

Downloads

Delta PLC DVP Series Brochure
Delta PLC ES Series Catalog
Delta PLC ES Series Datasheet
DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
Dimensions DVP-ES3/ES2 Series PLC [DVP24ES200R,DVP24ES200T]
Cad Drawings [DVP24ES200R,DVP24ES200T] 2D-CAD 3D-CAD
