Delta Electronics

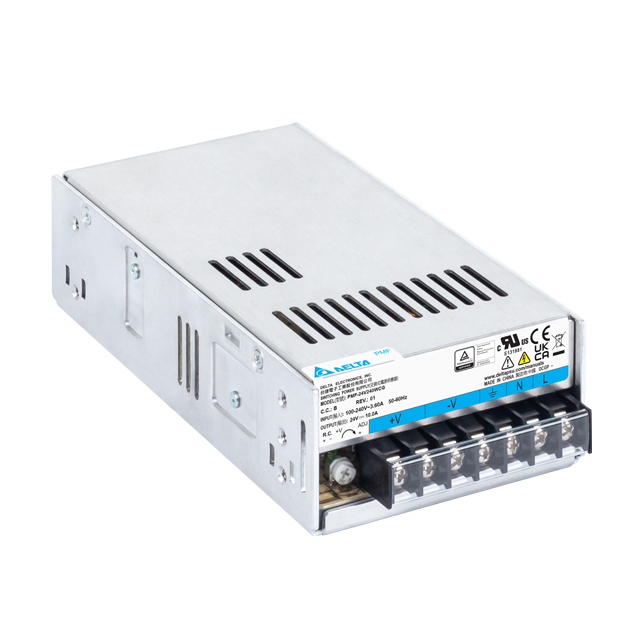

DeltaPMF-24V240WCGB

DeltaPMF-24V240WCGB

Output Voltage

24V

Output Power

240W

Output Current

10A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

190 x 93 x 50 mm
7.48” x 3.66” x 1.97”

Unit Weight

0.66 kg (1.46 lb)

Highlights & Features
  • Universal AC input voltage
  • Built-in Active PFC and fan speed control
  • Full Aluminium casing for light weight and corrosion resistant handling
  • Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A and Class D
  • Remote ON/OFF is available as an option
  • Cold start -20°C at 100% load (240W)
  • Low leakage current < 0.6mA @ 240Vac
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Short Circuit / Overvoltage / Overcurrent / Over Temperature Protections
