Delta Electronics

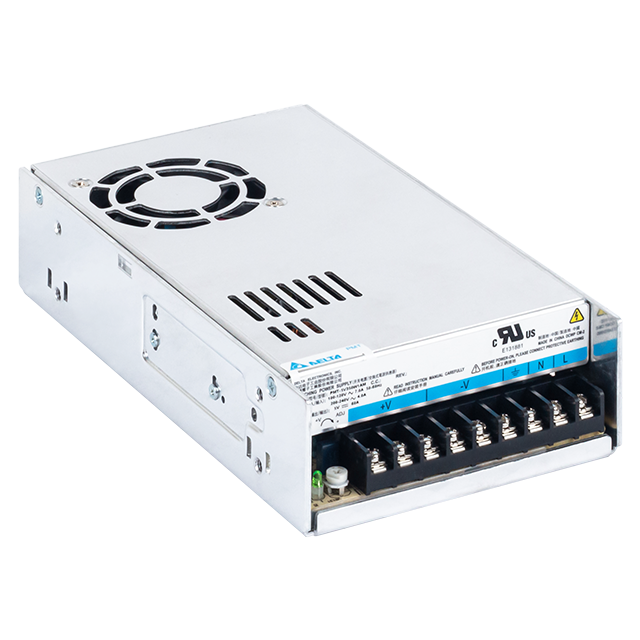

Delta PMT-5V350W1AM

Delta PMT-5V350W1AM

Output Voltage

5V

Output Power

300W

Output Current

60A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions (L x W x H)

215 x 115 x 50 mm
8.46” x 4.53” x 1.97”

Unit Weight

0.81 kg (1.79 lb)

Highlights & Features

AC input range selectable by switch
Full Aluminum casing for light weight and corrosion resistant handling
Built-in automatic fan speed control circuit
Wide operating temperature range from -20°C to +70°C and cold start at -40°C
MTBF > 700,000 hrs as per Telcordia SR-332
Short Circuit / Overvoltage / Overload / Over Temperature Protections
