Delta Electronics

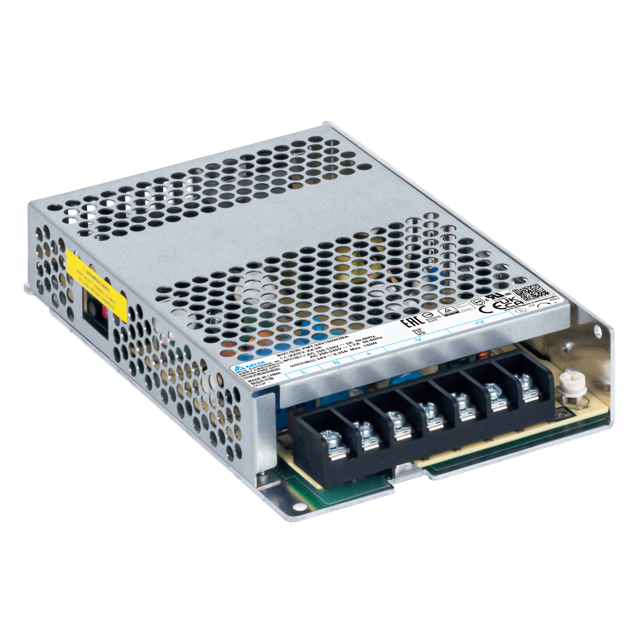

Delta PMT-24V150W2BA

Delta PMT-24V150W2BA

Regular price Rs. 2,027.00
Regular price Sale price Rs. 2,027.00
Sale Sold out

PRICES ARE FIXED AND NON NEGOTIABLE

TAXES : GST@18% EXTRA. DELIVERY PAN INDIA*

DELTA ELECTRONICS SALES : ☏ 080-42100546

Output Voltage

24V

Output Power

150W

Output Current

6.25A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions (L x W x H)

159 x 97 x 30 mm
6.26” x 3.82” x 1.18”

Unit Weight

0.354 kg (0.78 lb)

Highlights & Features
  • Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
  • AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
  • No load power consumption < 0.5W
  • Low profile design: 30mm height
  • OVC III, Pollution Degree 3
  • Wide operating temp -30°C ~ 70°C (Support -40°C cold start)
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • High MTBF > 700,000 hrs per Telcordia SR-332
  • Compliance with SEMI-F47
View full details
