Delta Electronics

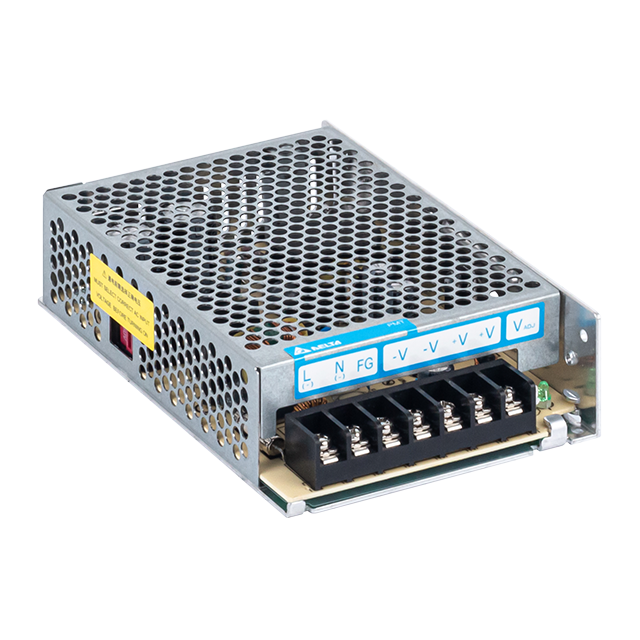

Delta PMT-24V100W1AA

Delta PMT-24V100W1AA

Output Voltage

24V

Output Power

108W

Output Current

4.5A

Input Voltage Range

85-132Vac, 176-264Vac (Selectable by Switch)

Dimensions (L x W x H)

158 x 97 x 38 mm
6.22” x 3.82” x 1.50”

Unit Weight

0.36 kg (0.79 lb)

Highlights & Features

AC input voltage range selectable by switch (85-132Vac, 176-264Vac)
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs as per Telcordia SR-332
Versatile configuration options (Enclosed, L Frame)
Versatile connector options (Terminal Block, Front Face, Harness)
