Delta Electronics

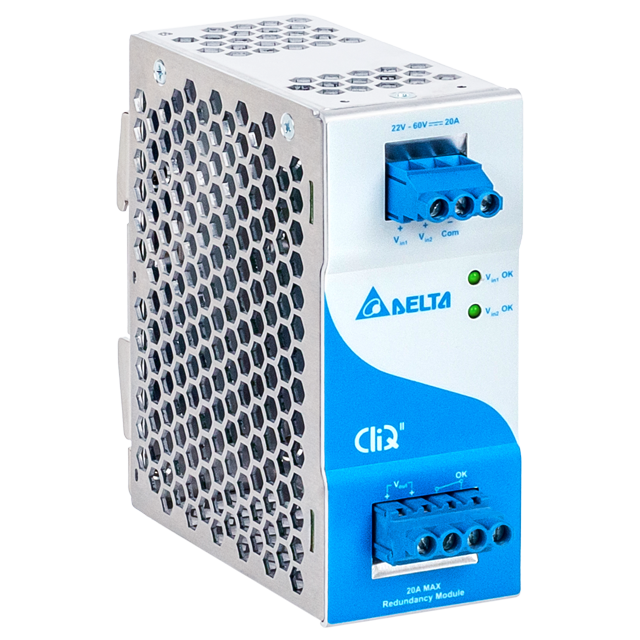

Delta DRR-20A

Delta DRR-20A

Output Voltage

24V

Output Power

 -

Output Current

20A

Input Voltage Range

22-60Vdc

Dimensions (H x W x D)

121 x 50 x 122.1 mm
4.76” x 1.97” x 4.81”

Unit Weight

0.38 kg (0.84 lb)

Highlights & Features
  • Wide input and output range of 22-60Vdc
  • Very wide operating temperature from -40°C to +80°C
  • Built-in 2 channel DC OK signal and alarm relay contact
  • Support N+1 Redundancy connection
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Hazardous Locations approval to ATEX and Class I, Div 2 (DRR-20A)
  • IP20 Certified
  • Certified according to IEC/EN/UL 62368-1
