Delta Electronics

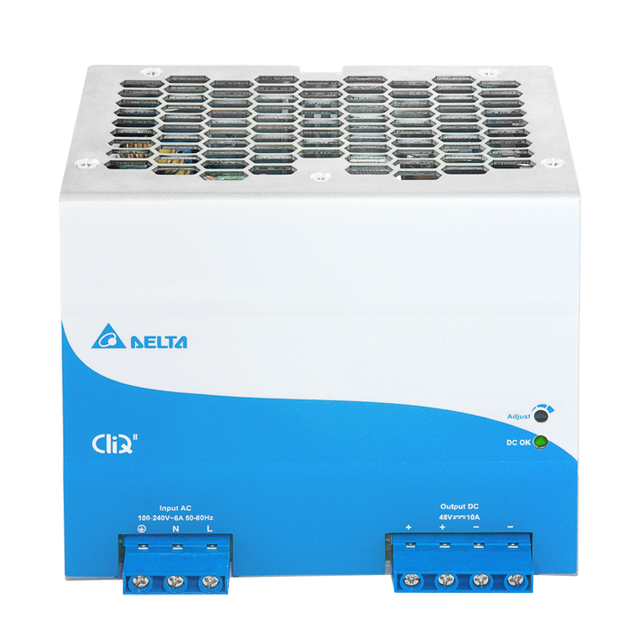

Delta DRP048V480W1BA

Delta DRP048V480W1BA

DELTA ELECTRONICS SALES : ☏ 080-42100546

Output Voltage

48V

Output Power

480W

Output Current

10A

Input Voltage Range

85-264Vac

Dimensions (H x W x D)

121 x 144 x 118.6 mm
4.76” x 5.67” x 4.67”

Unit Weight

1.37 kg (3.02 lb)

Highlights & Features
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • Power Boost of 150% for 5 seconds and 200% for 2 seconds
  • Full corrosion resistant aluminium casing
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Extreme low temperature cold start at -40°C
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Hazardous Locations approval for ATEX and Class I, Div 2 (DRP048V480W1BA)
  • Certified according to IEC/EN/UL 62368-1
