Delta Electronics

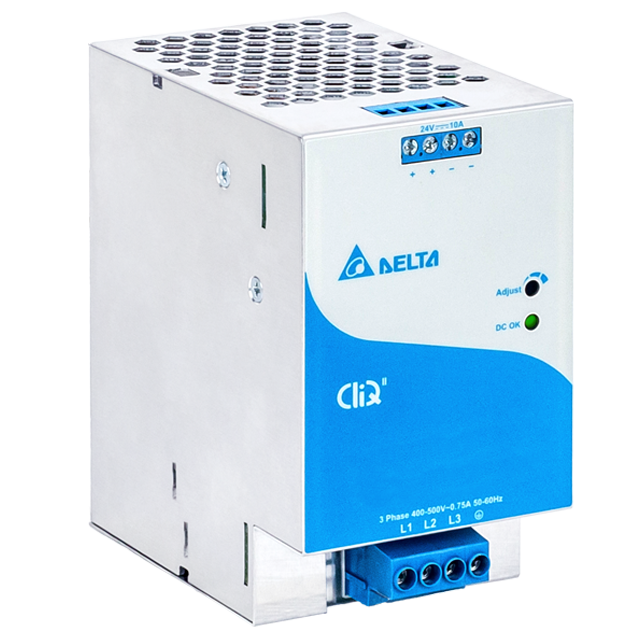

Delta DRP024V240W3BA

Delta DRP024V240W3BA

Output Voltage

24V

Output Power

240W

Output Current

10A

Input Voltage Range

3 x 320-600Vac

Dimensions (H x W x D)

121 x 70 x 117.3 mm
4.76” x 2.76” x 4.62”

Unit Weight

0.89 kg (1.96 lb)

Highlights & Features
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • Power Boost of 150% for 5 seconds
  • Full corrosion resistant aluminium casing
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Extreme low temperature cold start at -40°C
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Hazardous Locations approval for ATEX and Class I, Div 2 (DRP024V240W3BA)
  • Certified according to IEC/EN/UL 62368-1
View full details
