Delta Electronics

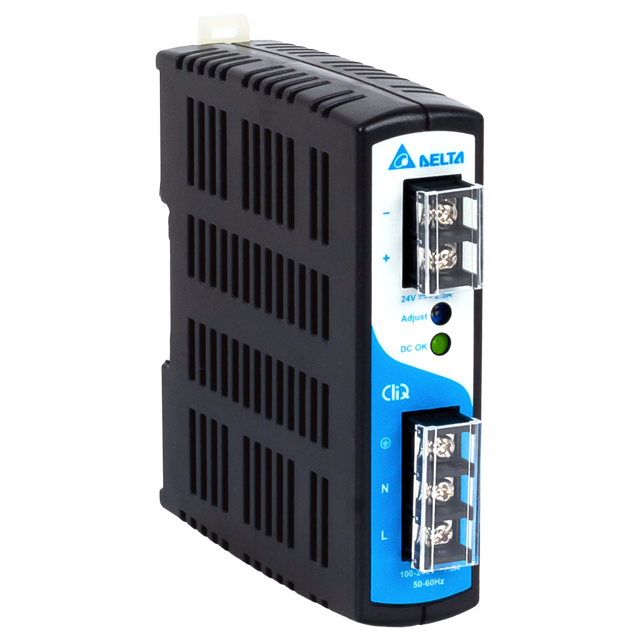

Delta DRP024V060W1AZ

Delta DRP024V060W1AZ

Output Voltage

24V

Output Power

60W

Output Current

2.5A

Input Voltage Range

85-264Vac

Dimensions (H x W x D)

120.6 x 32 x 113 mm
4.75” x 1.26” x 4.45”

Unit Weight

0.33 kg (0.73 lb)

Highlights & Features
  • Universal AC input voltage range
  • Power will not de-rate for the entire input voltage range
  • Power Boost of 150% for 3 seconds
  • Rugged and compact design (Vibration 5G, Shock 30G)
  • Conforms to harmonics current IEC/EN 61000-3-2, Class A
  • Wide operating temperature range -20°C to 80°C
  • Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
  • Certified according to IEC/EN/UL 62368-1

** Discontinued Product **

Replaced by: DRL-24V75W1AZ





View full details
