Delta Electronics

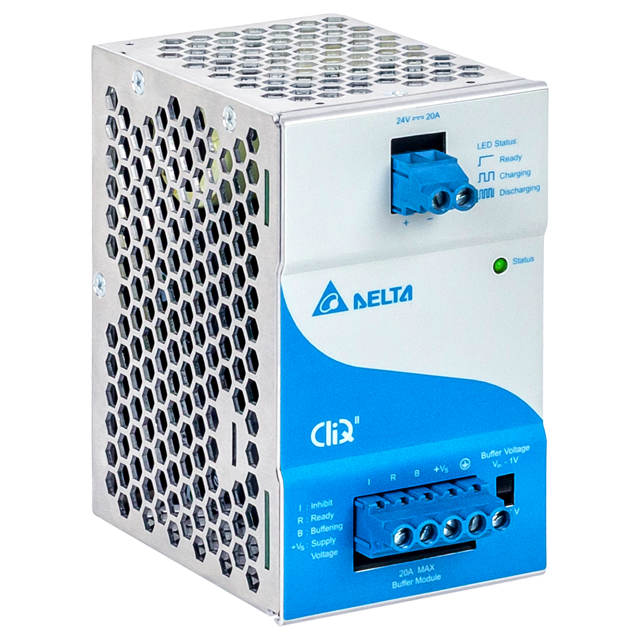

Delta DRB-24V020ABA

Delta DRB-24V020ABA

Output Voltage

24V

Output Power

 -

Output Current

20A

Input Voltage Range

22.8-28.8Vdc

Dimensions (H x W x D)

121 x 70 x 120.1 mm
4.76” x 2.76” x 4.73”

Unit Weight

0.76 kg (1.68 lb)

Highlights & Features
  • Minimum buffering time of 250ms @ 24V/20A
  • Flexible operating buffering voltage modes:
    - Fixed mode at 22Vdc
    - Dynamic mode for Vin -1V
  • Supports parallel connection to extend buffering time
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
  • Hazardous Locations approval to ATEX and Class I, Div 2 (DRB-24V020ABA)
