Delta Electronics

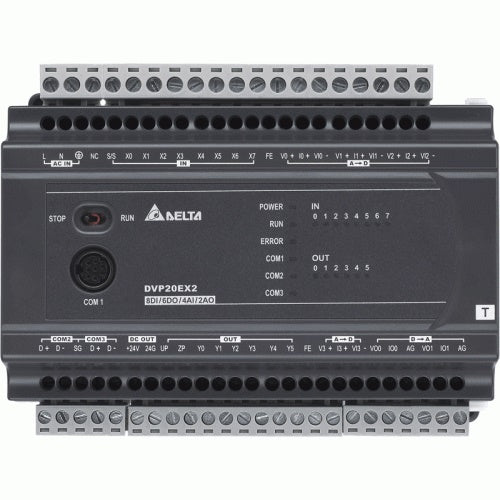

DVP20EX200R
DVP20EX200R
MPU with 8 DI; 6 DO(R); 4 AI; 2 AO || Main supply 100~240 V AC
Block Type Programmable Logic Controllers (PLCs)
EX2 series PLCs are compact highly efficient, functional instruments with incorporated communication capabilities, advantages such as built-in convenient commands offer easy access to operation and communication function monitoring.
Key features:
- Adopts 32-bit CPU
- Plug-in termination
- Analog Input/Output PLC
- Built-in 3 COM ports 1x RS232 and 2 x RS485
- Program capacity: 16k steps / data register: 10k words
- Compact dimensions (H) 90 mm x (D) 60 mm DIN rail mounting
- Exclusive instructions and functional blocks designed for PV solar tracker
- New motion control instructions: Close loop control, alignment mark, shield etc.
- With built-in PID auto tuning function, offering a complete analog control solution
- Built-in high speed inputs (2x 100 kHz 6x 10kHz) supports U/D, U/Ddir, A/B counting modes
| SERIES | EX2 series |
| SUPPLY | 100 - 240 VAC |
| DIGITAL INPUTS (DI) | 8 |
| DIGITAL OUTPUTS (DO) | 6 |
| ANALOG INPUTS (AI) | 4 |
| ANALOG OUTPUT (AO) | 2 |
| DESCRIPTION | Standard PLC |
| MOUNTING | DIN rail |
| RESOLUTION | 12 bit |
| OUTPUT TYPE | Relay |
