Delta Electronics

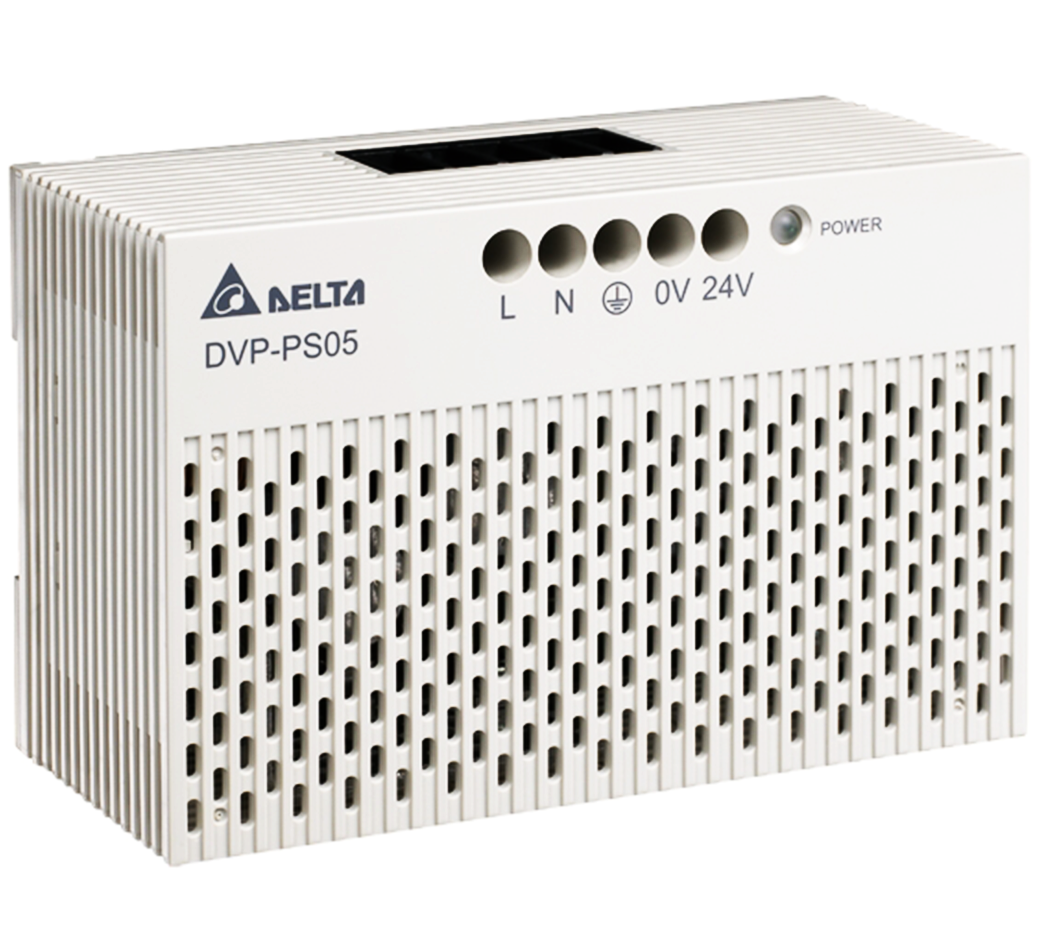

Delta DVPPS05

Delta DVPPS05

Output Voltage

24VDC (±3%)

Output Power

120W

Output Current

5 A

Input Voltage Range

100 ~ 240VAC (-15% ~ +10%)

Dimensions (H x W x D)

101 x 140 x 63.4 mm

Unit Weight

488 g

Highlights & Features
  • Universal AC input voltage range
  • Auto Recovery from Overcurrent/short circuit
  • Wide operating temperature range -20°C~55°C (temperature), 50~95% (humidity), Pollution degree 2 circuit protection
  • Certified by UL(UL508 Listed (Industrial Control Equipment))/CE (EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC)
  • Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
