Delta Electronics

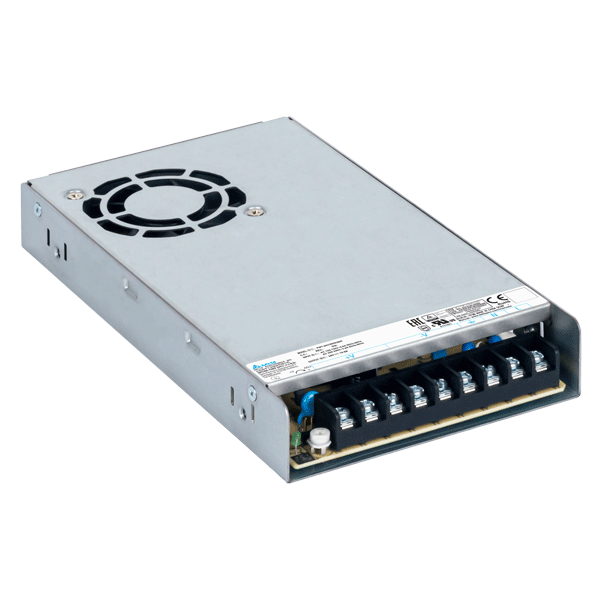

Delta PMT-24V350W2BR

Delta PMT-24V350W2BR

Output Voltage

24V

Output Power

350.4W

Output Current

14.6A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions (L x W x H)

215 x 115 x 30 mm
8.46” x 4.53” x 1.18”

Unit Weight

0.833 kg (1.84 lb)

Highlights & Features

AC input voltage range selectable by switch (90-132Vac, 180-264Vac)
No load power consumption < 0.75W
Low profile design: 30mm height
High MTBF > 700,000 hrs per Telcordia SR-332
150% Peak power supported as option
Wide operating temp -30°C ~ 70°C (Support -40°C cold start)
