Delta Electronics

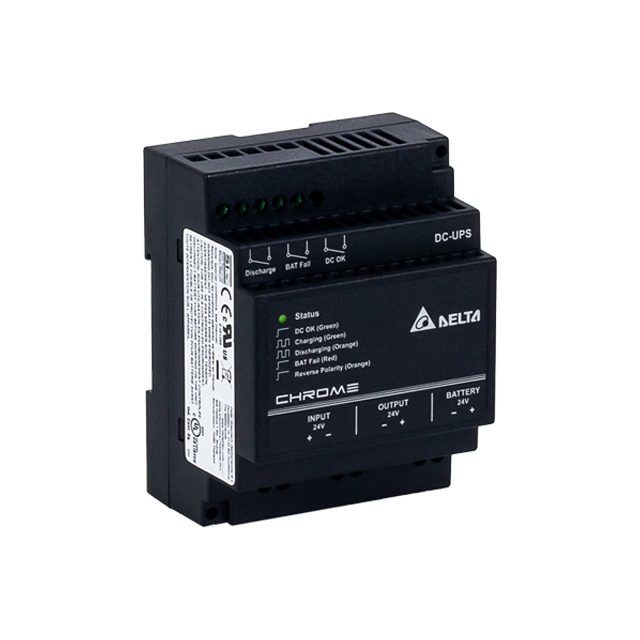

Delta DRU-24V10ACZ

Delta DRU-24V10ACZ

DELTA ELECTRONICS SALES : ☏ 080-42100546

Output Voltage

24V

Output Power

240W

Output Current

10A

Input Voltage Range

24-28Vdc

Dimensions (H x W x D)

91.0 x 71.0 x 55.6 mm
3.58” x 2.80” x 2.19”

Unit Weight

0.14 kg (0.31 lb)

Highlights & Features
  • Suitable for 24V system up to 10A
  • Zero switch over time from loss of DC input to battery operation
  • Built-in diagnostic monitoring for DC OK, Discharge and Battery Fail by relay contacts
  • Full power over entire operating temperature range from -20°C to +60°C
  • LED indicator for DC OK, Battery Charging, Battery Discharging, Battery Fail and Battery Reverse Polarity
  • High MTBF > 500,000 hrs as per Telcordia SR-332
  • Overvoltage / Overcurrent / Over temperature / Short circuit protections
  • Certified according to IEC/EN/UL 62368-1
